Description
Looking for spare/service parts for the Heiniger Xperience 2-Speed clipper? Make your selection based on the service diagram of the clipper. Tip: Available parts are visible after expanding the list above the Add to Cart button. GroomerShop.pl is an authorized warranty and post-warranty service for Heiniger clippers designed for animals. All offered parts are original service parts from the manufacturer. If you need a part that cannot be selected and/or is not shown in the diagram, please contact us, and we will verify the possibility of ordering it.
Product Code | Name
1 | SRV-HG-708-140 | Blade head for Heiniger Xperience
2 | SRV-HG-708-160 | Pressure adjustment knob cover for Heiniger Xperience
3 | SRV-HG-706-510 | Spacer screw for Heiniger Xperience
4 | SRV-HG-707-091 | Blade pressure sleeve for Heiniger Xperience
5 | SRV-HG-706-520 | Screw for Heiniger Xperience clippers M5 x 14
6 | SRV-HG-708-141 | Head casing for Heiniger Xperience
7 | SRV-HG-706-517 | Pressure spring for Heiniger Xperience clippers
8 | SRV-HG-706-511 | Pressure arm for Heiniger Xperience
9 | HG-706-507 | Yoke block for Heiniger Xperience clippers
10 | SRV-HG-706-525 | Guide screw M3 X 6 for Heiniger Xperience
11 | HG-706-518 | Arm/plate yoke for Heiniger Xperience clippers
12 | SRV-HG-708-150 | Yoke guide for Heiniger Xperience clipper
13 | SRV-HG-706-521 | Blade mounting screw for Heiniger Xperience
14 | HG-708-146 | Yoke sleeve for Heiniger Xperience/Xplorer
15 | SRV-HG-707-088 | Ring/seger size 3.73mm for Heiniger Xperience
16 | SRV-HG-706-524 | Seger ring size 6 for Heiniger Xperience clippers
17 | SRV-HG-708-145 | Crankshaft for Heiniger Xperience clippers
18 | SRV-HG-708-142 | Crank sleeve for Heiniger Xperience clipper
19 | SRV-HG-708-143 | Gear Z22 for Heiniger Xperience clippers
30 | SRV-HG-708-070 | Air filter for Heiniger Xperience clippers
31 | SRV-HG-708-061 | Switch slider for Heiniger Xperience
32 | SRV-HG-708-035 | Upper casing for Heiniger Xperience clipper
33 | SRV-HG-708-062 | Switch lock for Heiniger Xperience

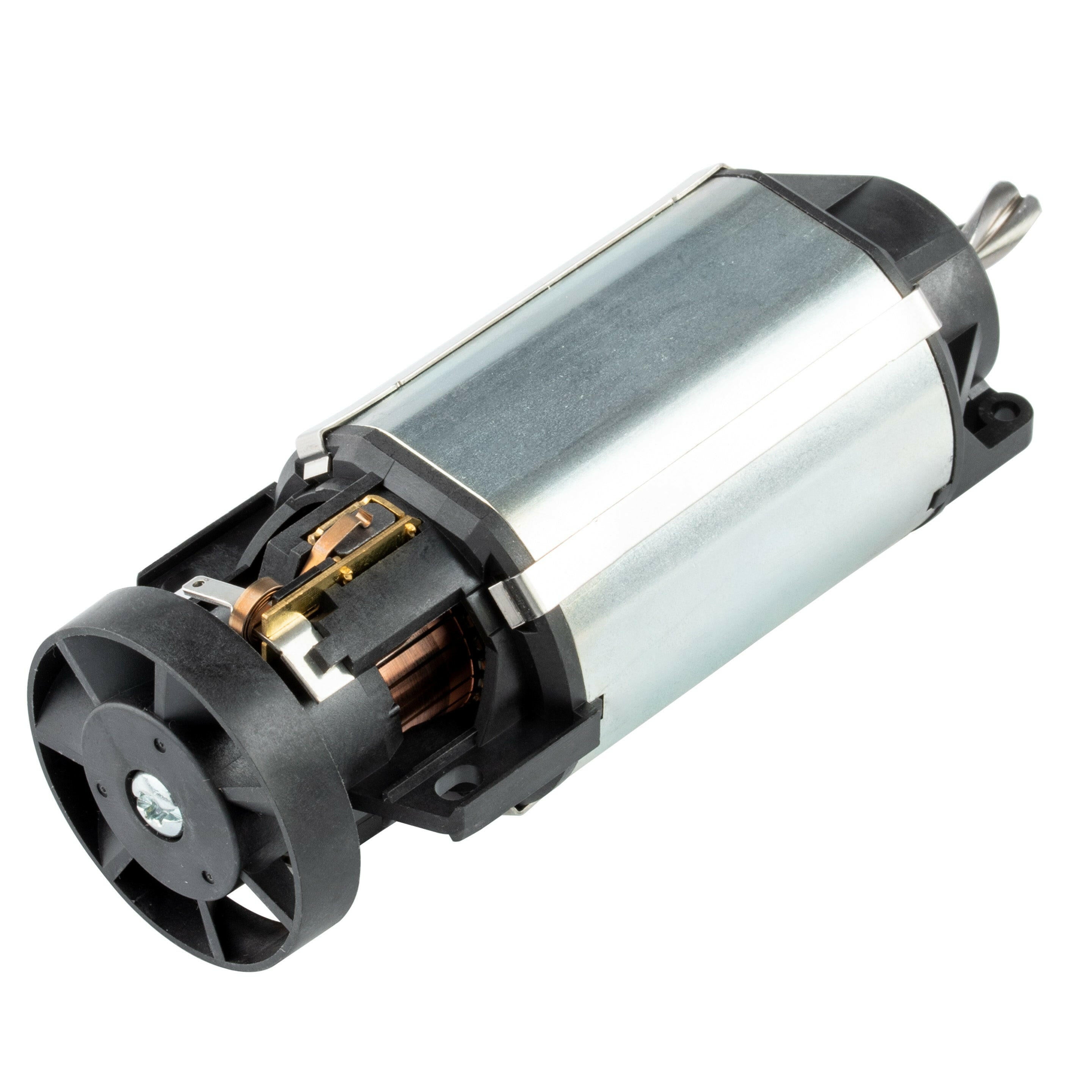

34 | SRV-HG-708-100 | Motor for Heiniger Xperience clippers
35 | SRV-HG-708-110 | Motor front for Heiniger Xperience clipper
36 | SRV-HG-708-138 | Motor stator for Heiniger Xperience clipper
37 | SRV-HG-708-120 | Ball bearing 8-19-6 for Heiniger clippers
38 | SRV-HG-708-122 | Washer for ball bearing for Heiniger clippers
39 | SRV-HG-708-130 | Rotor for Heiniger Xperience clipper
40 | SRV-HG-701-637 | Pressure ring for Heiniger Xperience clippers
41 | SRV-HG-708-116 | Rear motor holder for Heiniger Xperience
42 | SRV-HG-708-124 | Carbon brush spring for Heiniger Xperience clipper
43 | SRV-HG-706-523 | Mounting screw M4 X 10 for Heiniger Xperience clipper
44 | SRV-HG-708-123 | Fan wheel for Heiniger Xperience clipper
45 | HG-708-118 | Carbon brush for Heiniger Xperience clipper
46 | SRV-HG-708-115 | Motor clamp/mount for Heiniger Xperience
47 | SRV-HG-708-050 | Lower casing for Heiniger Xperience clipper
48 | SRV-HG-707-082 | Cable holder for Heiniger Xperience clipper
49 | SRV-HG-707-080 | Cable bend for Heiniger Xperience clippers
50 | SRV-HG-708-082 | PCB electronics for Heiniger Xperience clipper
51 | SRV-HG-708-125 | Connecting wire for Heiniger Xperience
52 | HG-707-557 | Large casing screw (KA 3x16) for Heiniger Xperience clipper
53 | SRV-HG-707-055 | Power cable for Heiniger Xperience clippers
